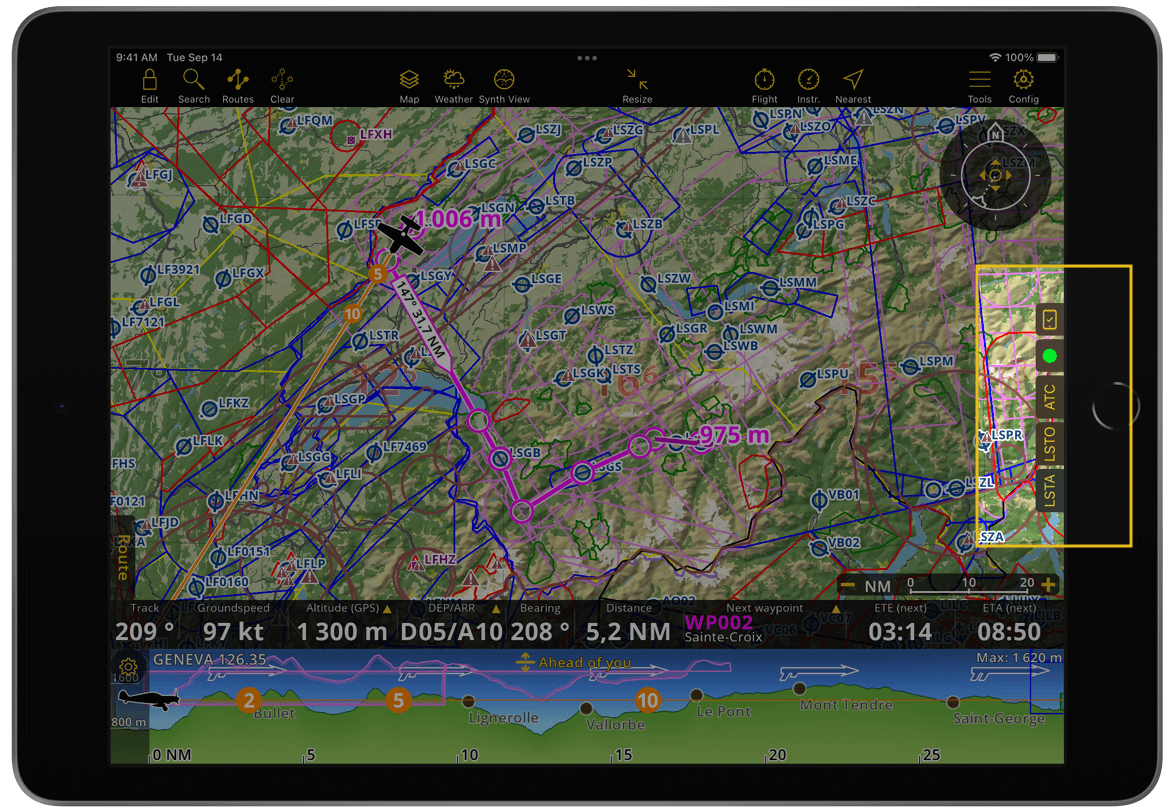

Docks#

The docks provide quick access to key information about your offline data, sensor and device storage space status, ATC position report and departure/arrival waypoints. Tapping on a docks opens a tab with further details. To close it, simply tap anywhere on the map.

docks

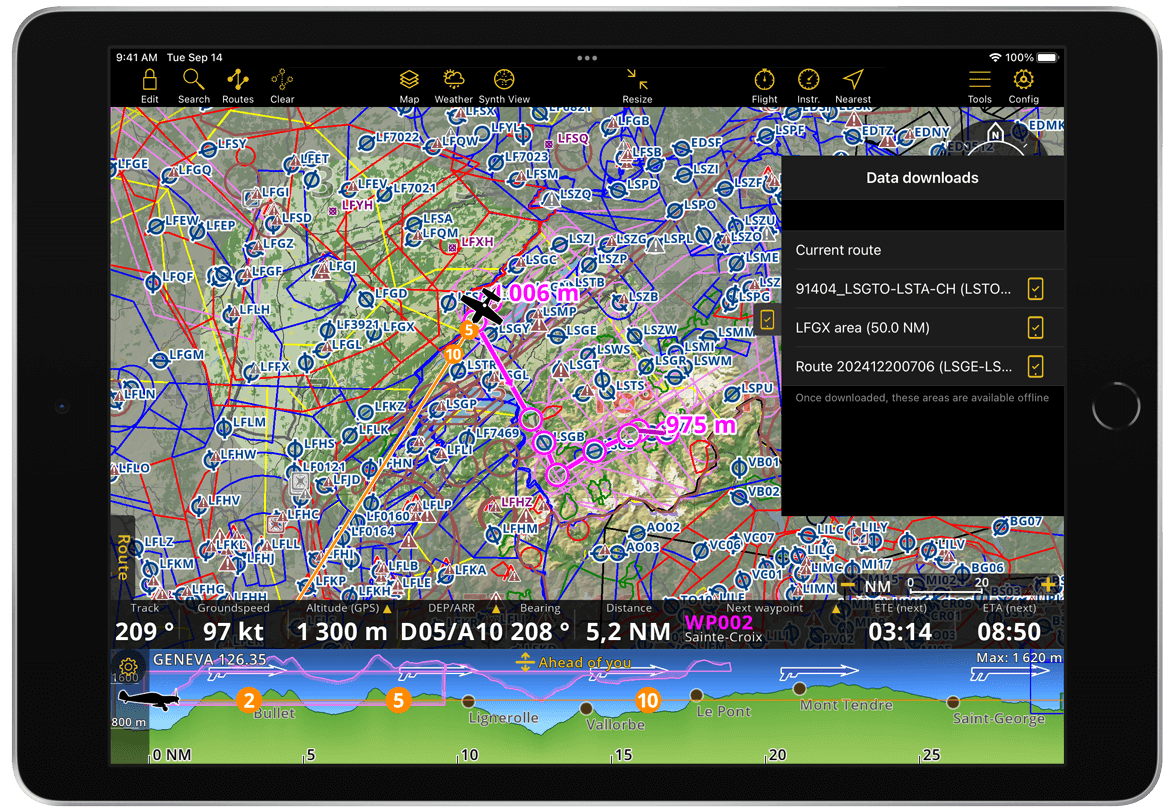

Data downloads#

Downloaded SmartChart around your route or a waypoint can be accessed from the dock. Once stored on your device, these map areas remain available even without an internet connection.

data download

Download SmartChart for your route#

On the Menu bar, (for Mobile version tap Map Menu) tap
Select the route you want to download from one of the following folder: My saved routes, Local and imported routes or your Air Navigation Manager organization
Tap the button next to the route
Select Download SmartChart, then tap OK
A icon will appear in the Data downloads dock while the download is in progress
Once the download is complete, you will see the icon appear
To remove the downloaded smartchart, tap the or beside the waypoint in the docks and select Remove

Download SmartChart around a waypoint#

On the Moving Map, tap the waypoint you want to download.
In the popover, tap icon at the upper right corner.
Select Download SmartChart.

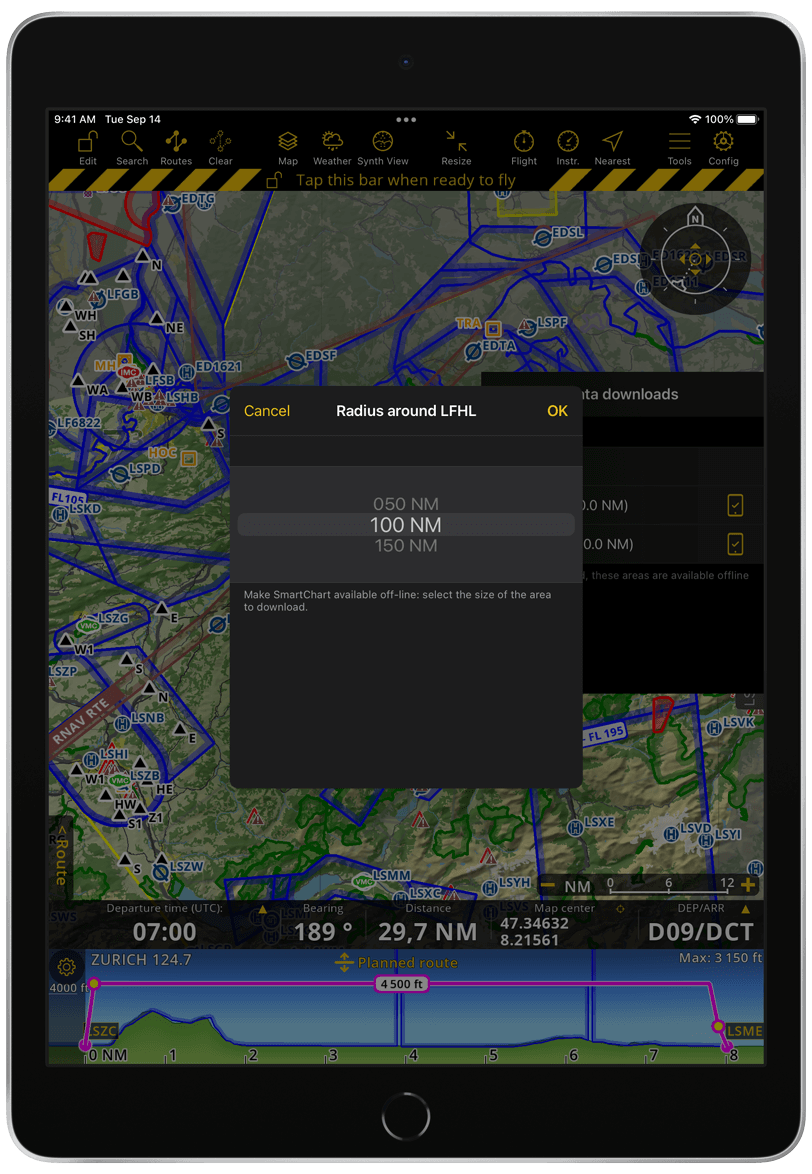

Choose the radius of the waypoint you want to download.
Tap OK to confirm.

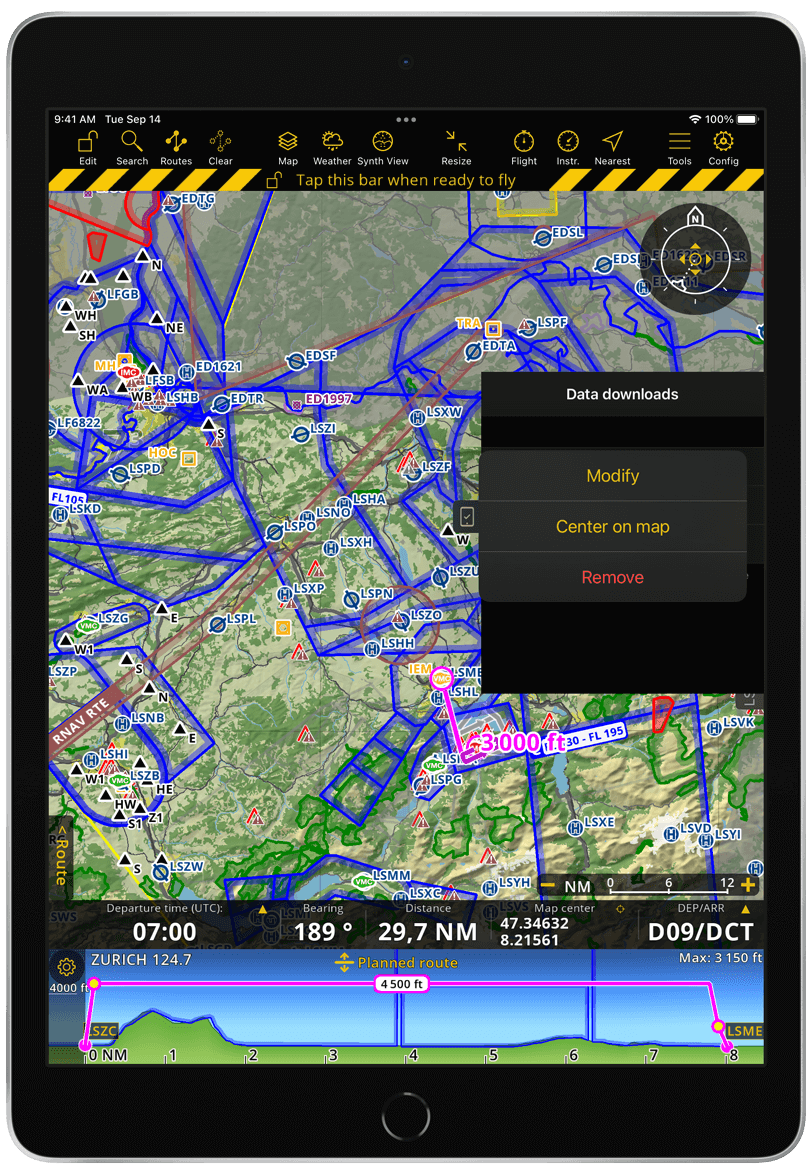

To modify the radius, tap the or icon beside the waypoint in the docks and select Modify.
Choose your desired radius, then tap OK.
Select Center on map to quickly locate the downloaded waypoint on the map.
To remove the downloaded SmartChart, tap the or icon beside the waypoint in the docks and select Remove

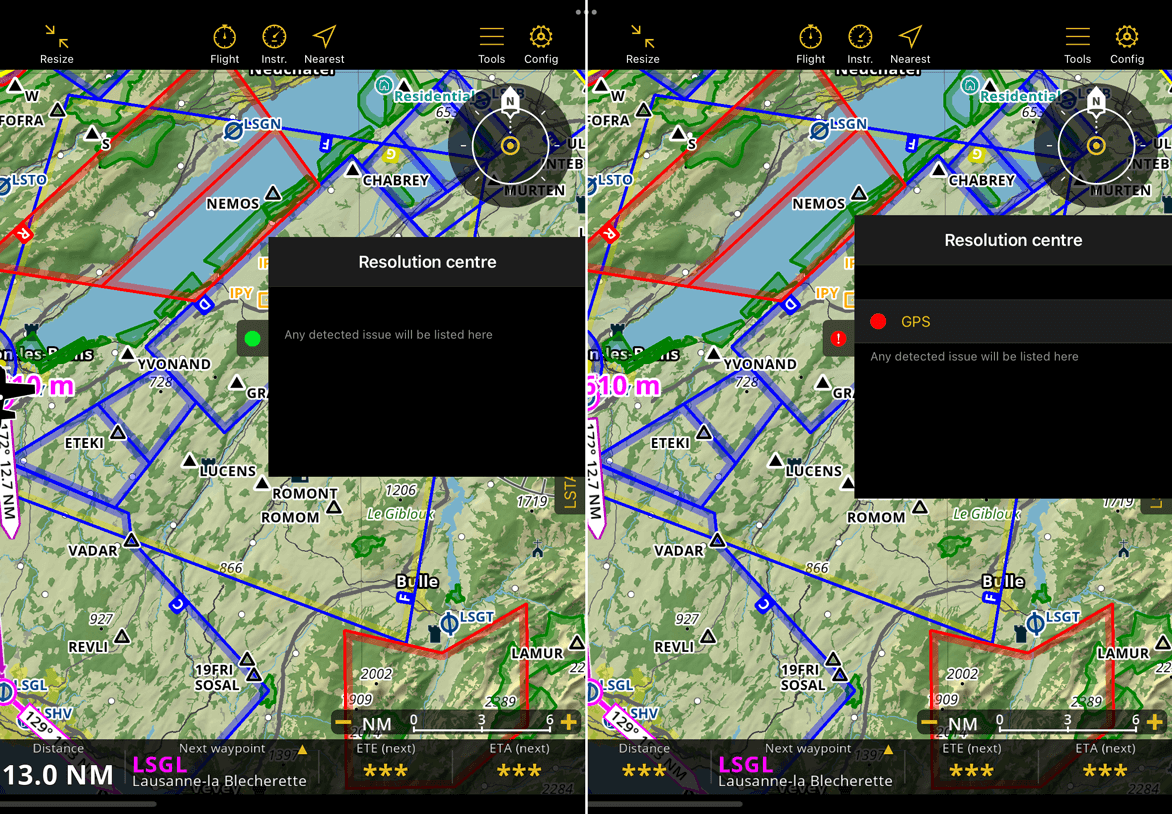

Resolution Centre#

The Resolution Centre provides a centralized list of system and device-related issues detected by the app, helping ensure optimal performance and flight safety. Status Indicator (Coloured Dot Icon) located on the second dock, the coloured dot provides a quick visual status:

green - no issue detected
red - problem detected
amber - if nothing is done, an issue might happen.

Examples of Detectable Issues:

GPS Error – GPS signal is lost or unreliable
Barometer Error – Sensor malfunction or unavailable pressure data
Low Device Storage – Insufficient storage may impact performance or data recording

gps

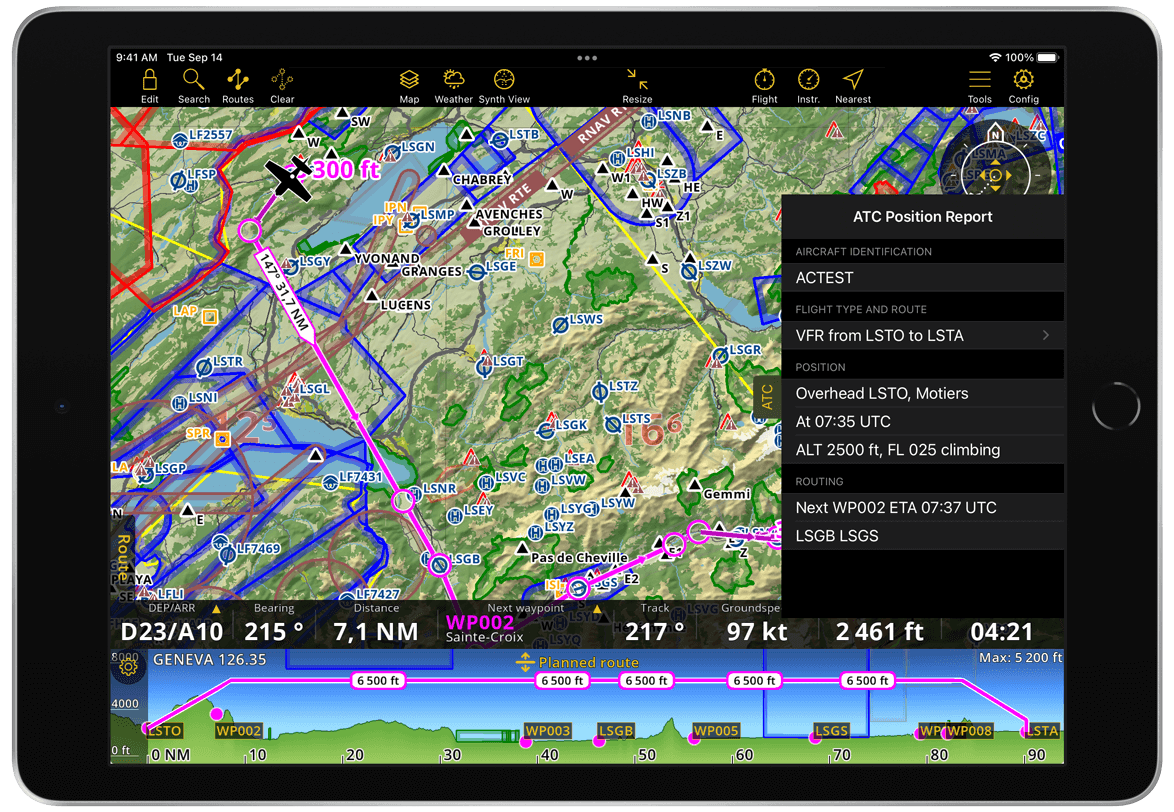

ATC#

The ATC feature provides sample phrases you can use to communicate your status to Air Traffic Control. It serves as a helpful reference for proper radio communication.

Note

ATC features are only available on iPads and larger iPhone screens, such as the iPhone 6 and newer.

atc

Departure and Arrival dock#

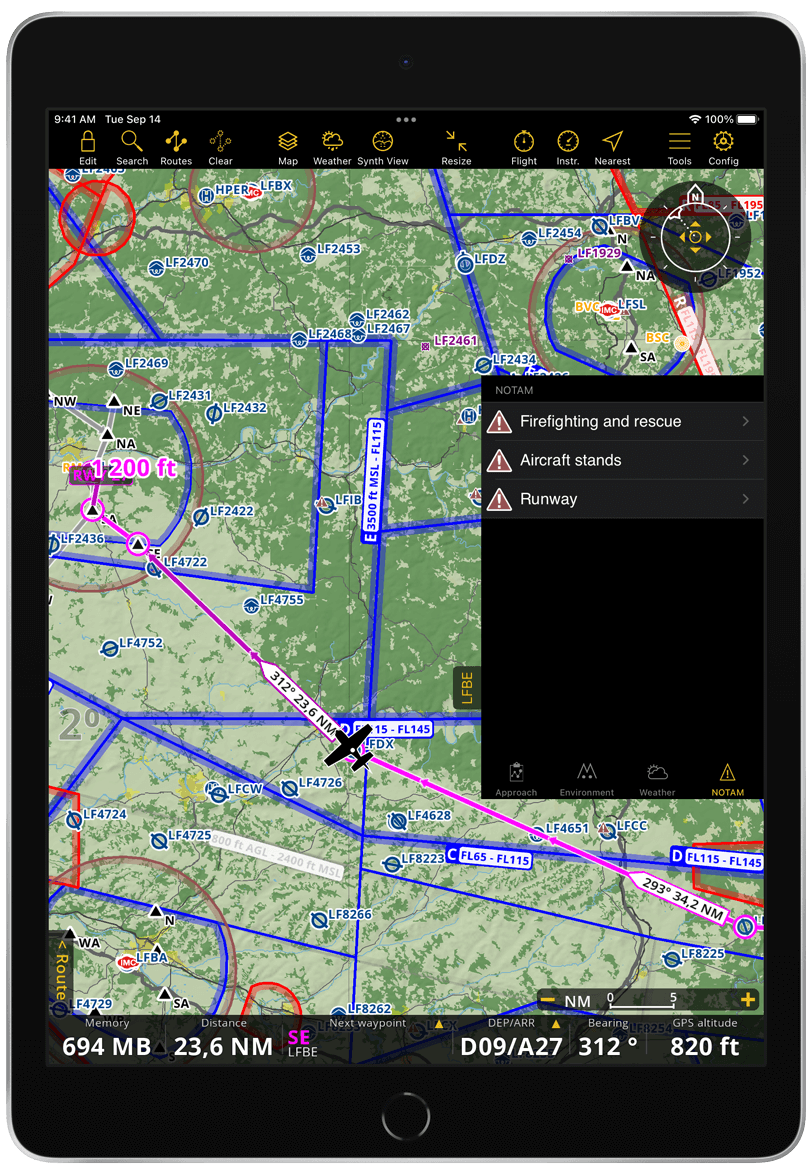

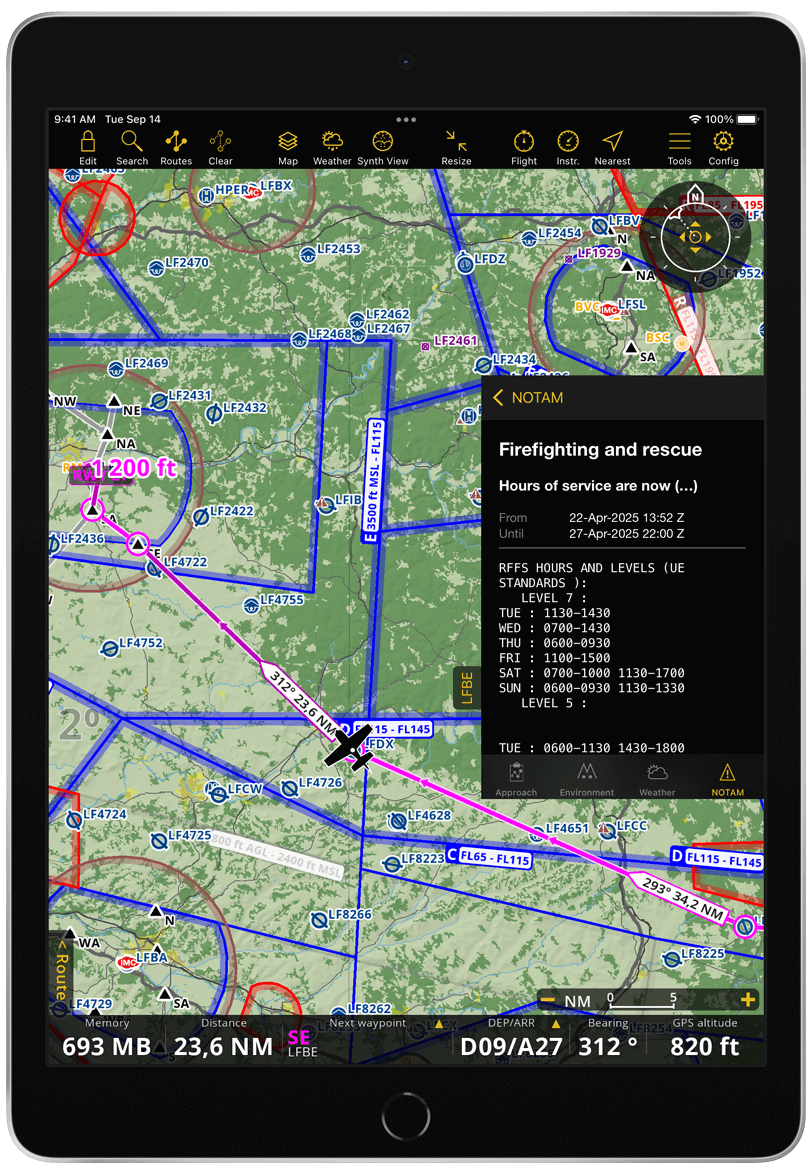

When a route is created on the map, the Departure and Arrival docks automatically appear. Each dock displays tabs with key information, including its charts, documents, and communication frequencies, along with surrounding Environment data, current Weather conditions, and active NOTAMs.

Create a route on the moving map.
On the right side of the screen below the ATC, the identifier of the Departure waypoint and the identifier of the Arrival waypoint are displayed.
Tapping on the Departure/Arrival drawer to get further information about these waypoints

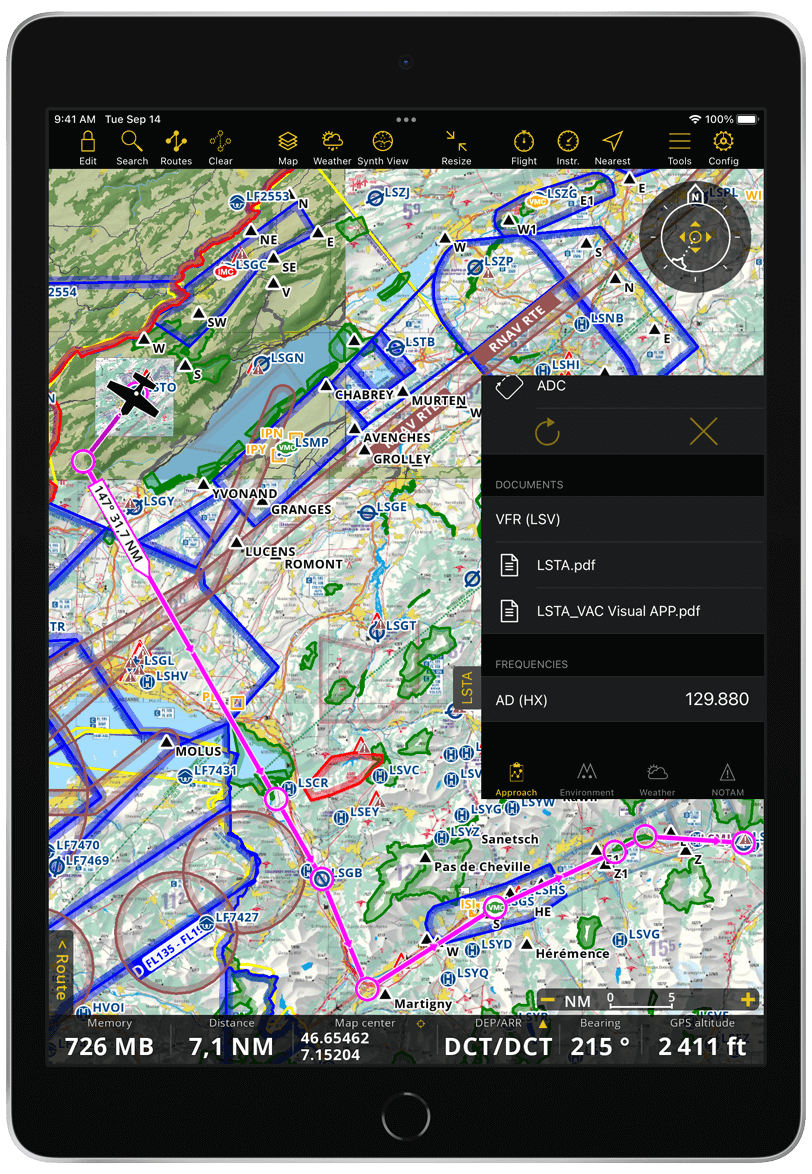

Departure / Arrival#

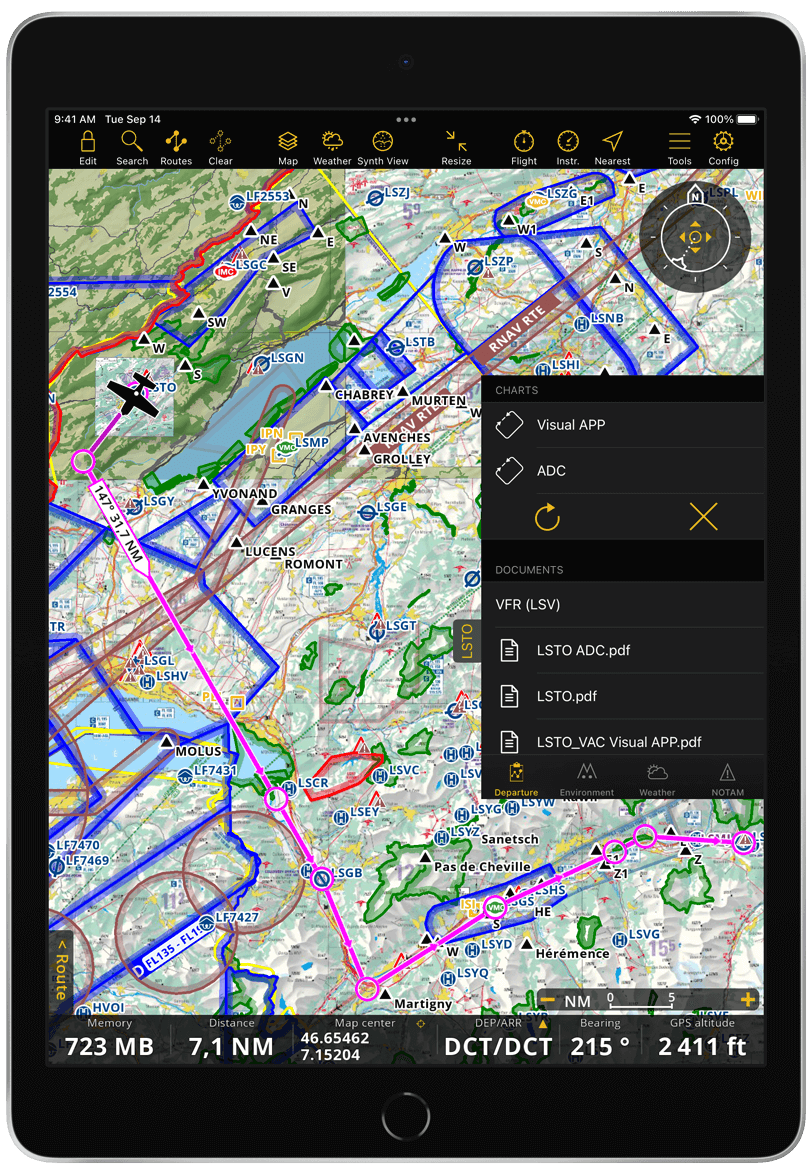

On this tab you will have access to the charts and documents related to the waypoint as well as its frequencies.

When you tap on a chart, it will be displayed on the Moving Map, activating the following icons:

Lets you switch between available charts and display on the map.
Hides the currently displayed chart on the map.

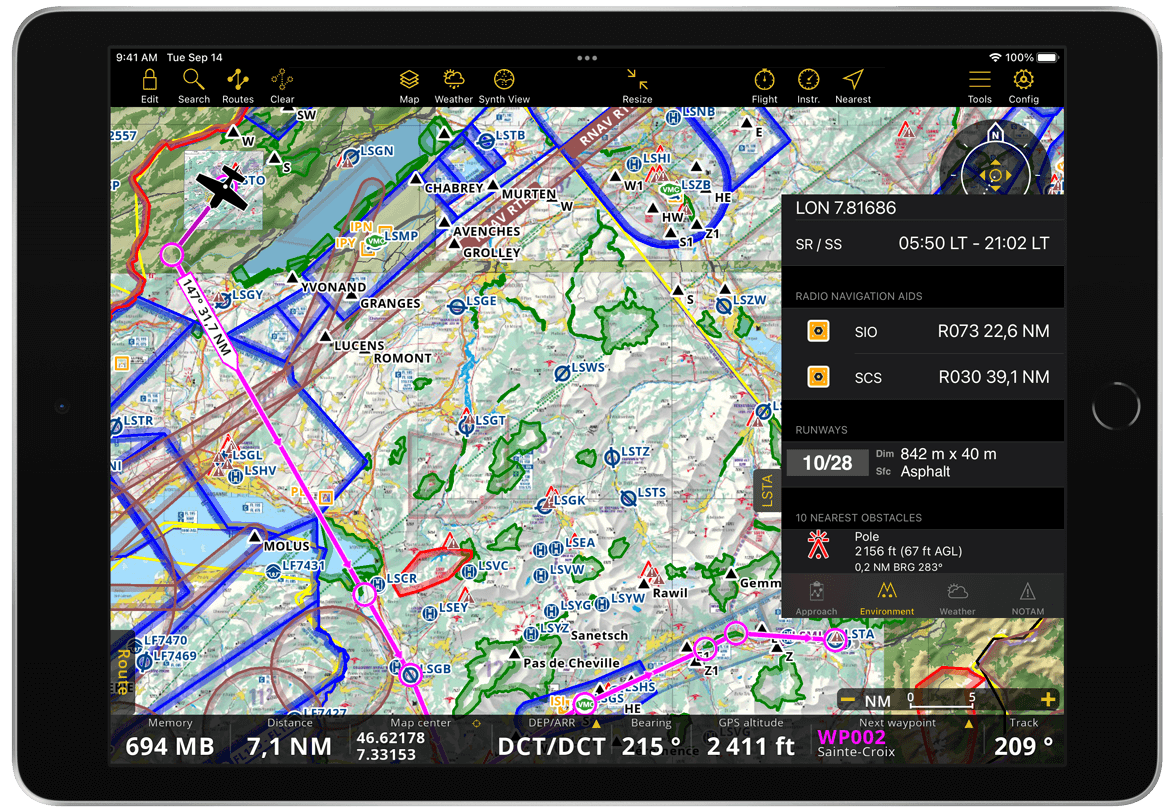

Environment#

Displays key information about the airfield’s location and its surroundings, including elevation, coordinates, sunrise/sunset times, radio navigation aids (with distance and radial), runway details, and any nearby obstacles.

environment

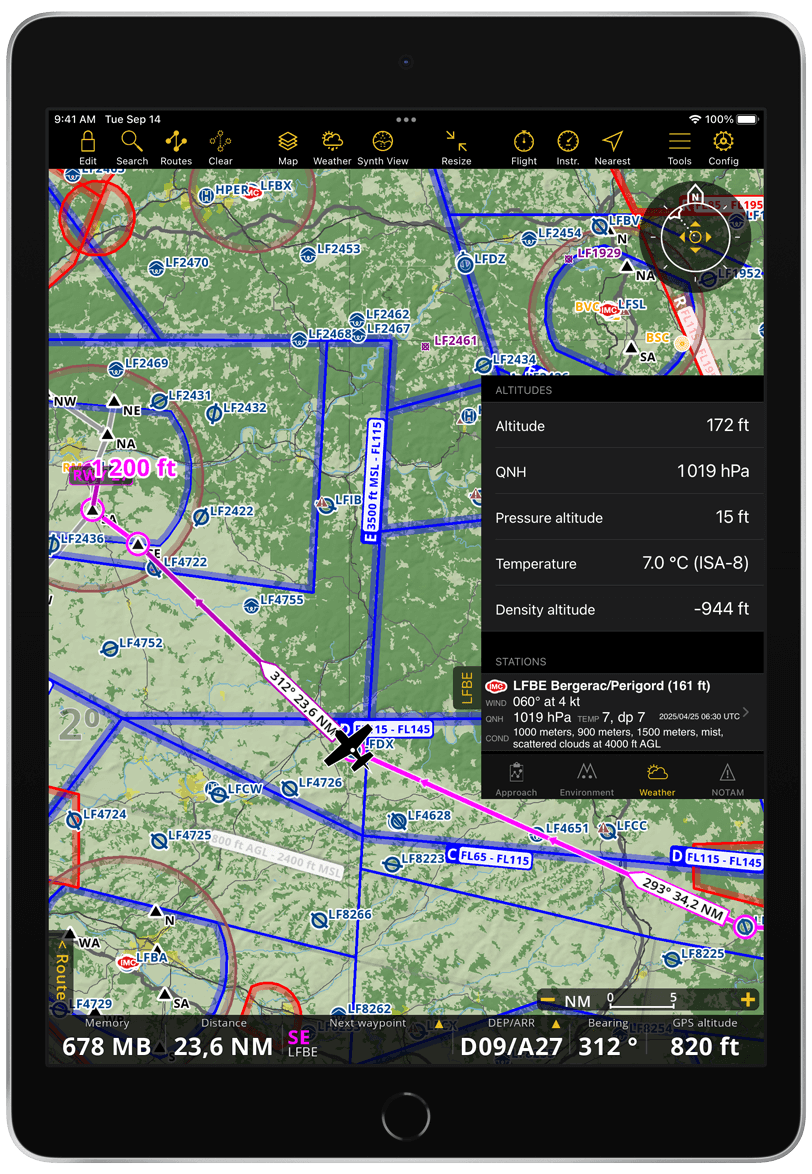

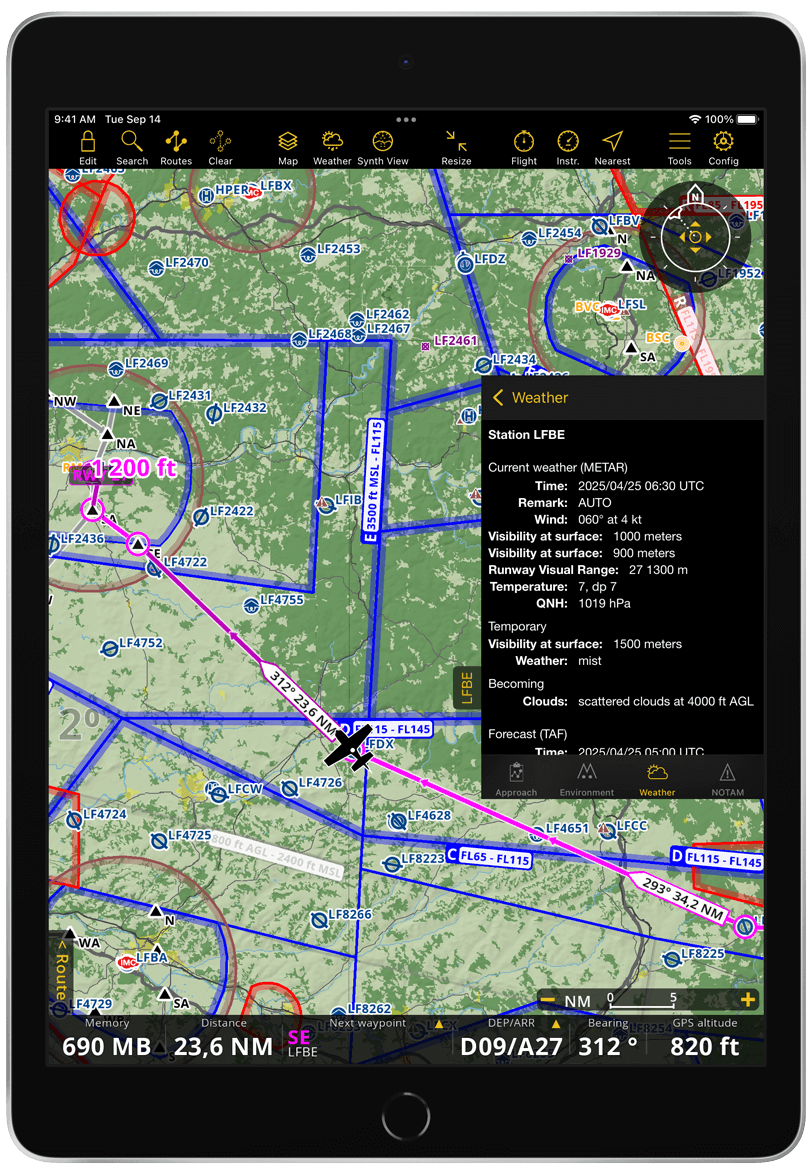

Weather#

Provides weather information gathered from nearby weather stations around the airfield. The app uses this data to calculate altitudes based on current conditions and displays the METAR. You can tap on a station to view a detailed weather report, which includes the TAF (Terminal Aerodrome Forecast) when available.
